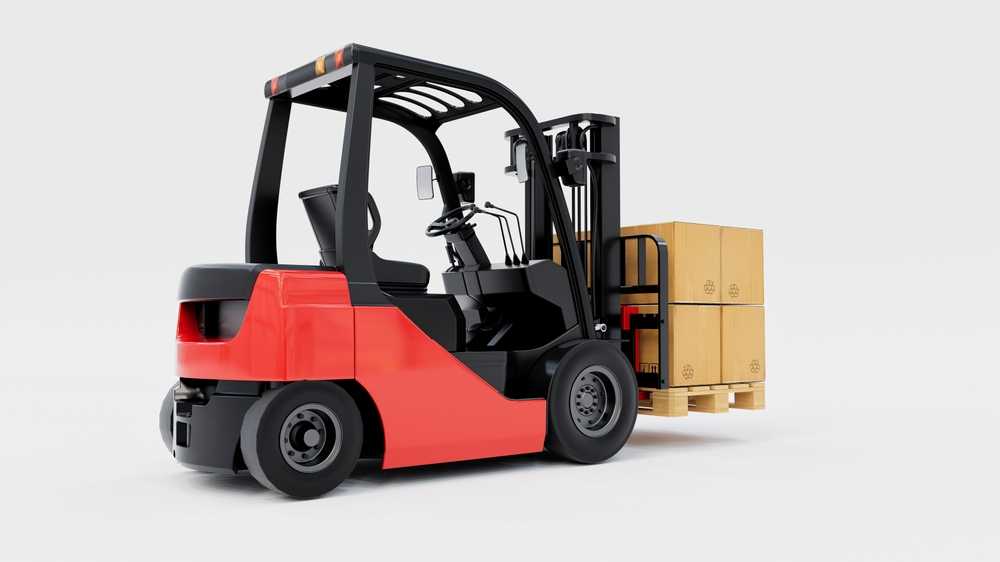

Forklift Mast Types Explained: Simplex, Duplex, Triplex & Quad Masts Compared

At the front of every forklift, there is a vertical assembly that moves up and down and can also tilt the load, with the specific movements changing depending on the forklift mast types that you are using. For example, even if you have two forklifts that have the same engine and capacity, the performance is completely different based on the mast configuration.

If you are planning to rent or buy a forklift, then it’s essential to take a close look at the mast specs. Yes, engine type and lift capacity are also important, but don’t overlook the mast type. The wrong configuration could result in operational issues and even safety concerns. Our team at ACE Equipment is here to provide personalized recommendations so that you have the ideal type of equipment for your unique needs.

Key Terms Every Buyer Needs to Know Before Choosing Forklift Mast Types

It might feel confusing to choose a forklift, especially if you don’t know much about the industry. Here are a few key terms that will help you choose the right forklift for your project:

• Maximum Fork Height: This measurement indicates the highest point the forks will be able to reach when they are fully extended.
• Collapsed Height: This term refers to the height of the mast when it’s fully lowered, which matters in facilities that have low clearance areas (such as overhead doors).
• Forklift Mast Free Lift: When you hear someone talking about this, it indicates how far the forks rise before the mast starts to extend, which matters in indoor conditions.
• Lift Capacity at Height: When the mast extends, the rated capacity drops. It’s essential to understand the lifting capacity to minimize serious safety risks.

The 4 Types of Forklift Masts Explained

Here’s a breakdown of the 4 different types of masts that you can choose: simplex, duplex, triplex, and quad mast:

• Simplex (Single-Stage Mast): This design has one set of rails and no free lift. The whole mast extends as one unit and offers the best visibility of any mast type. One potential drawback is that a limited lift height can be impractical for settings with warehouse racks. This type of forklift is often used for outdoor yard work or where the lift height requirements are minimal.
• Duplex (Two-Stage Mast): When you need a true free lift, a two-stage mast is ideal. This format allows the fork to rise to a usable height before the outer mast starts to extend, which is why it’s a great choice if you are using the forklift for container loading or trailer work. Since this type of forklift mast is ideal for dock environments, it’s often called a trucker’s mast.
• Triplex (Three-Stage Mast): This configuration is the most common for warehouses and distribution centers. The benefit of this type of forklift mast is that it delivers optimal fork height with low collapsed height to allow indoor use. This format allows you to reach high racking without sacrificing the ability to move indoors.
• Quad (Four-Stage Mast): When you need extreme lift heights and you are working in narrow aisles (such as high-bay warehouses), then a four-stage mast might be the right choice. But there are tradeoffs with this type of forklift mast because you have reduced visibility, and there is a significant reduction in the lifting capacity when the forklift is at full extension.

5 Questions to Ask First: How to Choose Forklift Mast Configuration

There isn’t a one-size-fits-all solution for choosing from the different types of forklift masts. When you contact our team for forklift recommendations, we will ask questions about the environment where you will be using the equipment, as well as the types of lifting that are needed. Ask yourself these five questions to choose from different forklift mast types:

• How high do you need to lift the loads? Measure the maximum required lift height to the top shelf.
• Do you have any overhead clearance restrictions? Check the area for anything that might restrict clearance, such as doorframes or sprinkler systems. Make sure to choose a forklift with a low enough collapsed mast height for these conditions.
• How much weight do you need to lift at full extension? Not only do you need to evaluate the rated capacity, but capacity curve is another factor that will affect your decision.
• Will the forklift be used indoors, outdoors, or both? The free lift requirements change depending on where you are planning to operate the forklift.
• Are you renting or buying? How long do you need the forklift? If you only need a short-term rental, then it might make sense to choose a different mast. On the other hand, a long-term purchase often needs to be a bit more versatile.

FAQs

What is the most common type of forklift mast?

The most common of the forklift mast types that are available is the triplex. This type of mast balances the lift height and collapsed profile, allowing optimal performance without sacrificing indoor maneuverability.

What forklift mast components need to be inspected?

Regular maintenance should include lubrication for the chains and rails. Also, look for hydraulic leaks. Every forklift must be inspected before each shift based on OSHA safety requirements.

What does free lift mean on a forklift mast?

The term “forklift mast free lift” refers to the distance the forks can move up before the outer mast stages start to extend. This measurement is important, especially for operations with limited overhead clearance.

Does a taller forklift mast reduce load capacity?

Yes, the capacity will reduce the more the load height increases. Make sure to always check the capacity ratings before loading the forklift.
